VEQTRON™ ICG


4K Imaging System for Guided Surgery

ICG/NIR fluorescence surgical imaging is one of the most valuable technologies in minimally invasive procedures, especially during intraoperative visualization of visceral perfusion, biliary structures, or lymph node mapping.

Maximum Viewing Experience

  • Proprietary technology enhances color and detail
  • High sensitivity enables effective visualization of ICG dye

Multi-Display Mode

  • Total visualization from one screen
  • Standard Fluorescence, Iso-Fluorescence, NIR black-white, White Light

Automatic Light Adjustment

  • In White Light or NIR modes
  • Adaptive response based on scope to tissue distance

Full System Control

  • Customizable image settings for surgeon preference
  • Adapt preferred vividness of on-screen colors

Four Display Modes

VEQTRON™ Imaging System offers four different display modes.

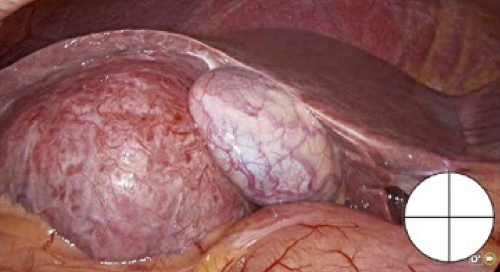

Standard White Light Mode*

3-CMOS white light image which is used for all standard minimal invasive surgeries

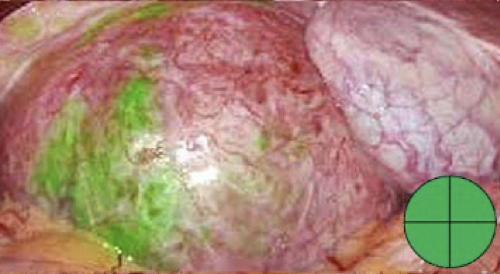

Standard Fluorescence Mode*

High-quality fluorescence imaging for detection of ICG

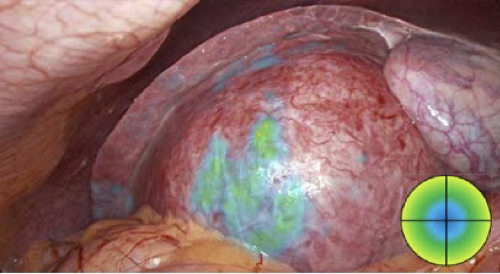

ISO Fluorescence Mode*

Fluorescence and white light image merging for intensity tracking of ICG direction of flow

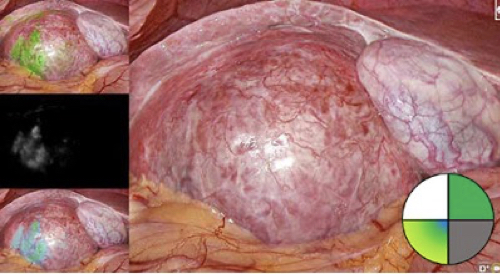

Multi-Display Mode*

White Light, Fluorescence Green, ISO Fluorescence and NIR black-white displayed at same time with option to toggle on main display

* Referencehttps://amnotec.de/en/products/veqtron#

Enhance your visual capabilities without compromising image quality. Request a demonstration with your local CONMED Representative today

Documents And Specifications

Capital Unit

CAT#
71-068-05 NIR
VEQTRON® ICG/NIR 4K UHD Endoscopic Fluorescence Imaging System, 4 CMOS, Camera Control Unit
CAT#
71-068-10 NIR
VEQTRON® ICG/NIR 4K UHD Endoscopic Fluorescence Imaging System, 4 CMOS, Camera Head
CAT #
71-182-30 NIR
VEQTRON® ICG/NIR Twinlight LED-LASER Light Source

Accessories

CAT#
71-089-30 NIR
VEQTRON® ICG/NIR Zoom Objective, f=14–28mm
CAT#
71-088-20 NIR
VEQTRON® ICG/NIR Objective, f = 20 mm
CAT#
71-088-23 NIR
VEQTRON® ICG/NIR Objective, f = 23 mm
CAT#
71-088-27 NIR
VEQTRON® ICG/NIR Objective, f = 27 mm
CAT#
71-146-30 NIR C-US
VEQTRON® ICG/NIR Cold Light Cable, Ø 4.5 mm, L. 300 cm, Autoclavable
CAT#
71-705-52 NIR TT
VEQTRON® ICG/NIR Workstation Equipment Cart, 133 x 61 x 62 cm (HxWxD)
CAT#
71-705-46
Swivel Arm, Single, for Second TFT- Monitor, Max. load: 3 - 10 kg

Laparoscopes

CAT#
72-405-30 NIR
VEQTRON® 4K UHD Laparoscope, Ø 5.5 mm, 30°, WL. 310 mm, Autoclavable
CAT#
72-410-00 NIR
VEQTRON® 4K UHD Laparoscope, Ø 10 mm, 0°, WL. 310 mm, Autoclavable
CAT#
72-410-30 NIR
VEQTRON® 4K UHD Laparoscope, Ø 10 mm, 30°, WL. 310 mm, Autoclavable
CAT#
72-405-00 NIR
VEQTRON® 4K UHD Laparoscope, Ø 5.5 mm, 0°, WL. 310 mm, Autoclavable

Experience the Difference
