TruPass®

SW Papillotome

Designed to deliver guaranteed orientation

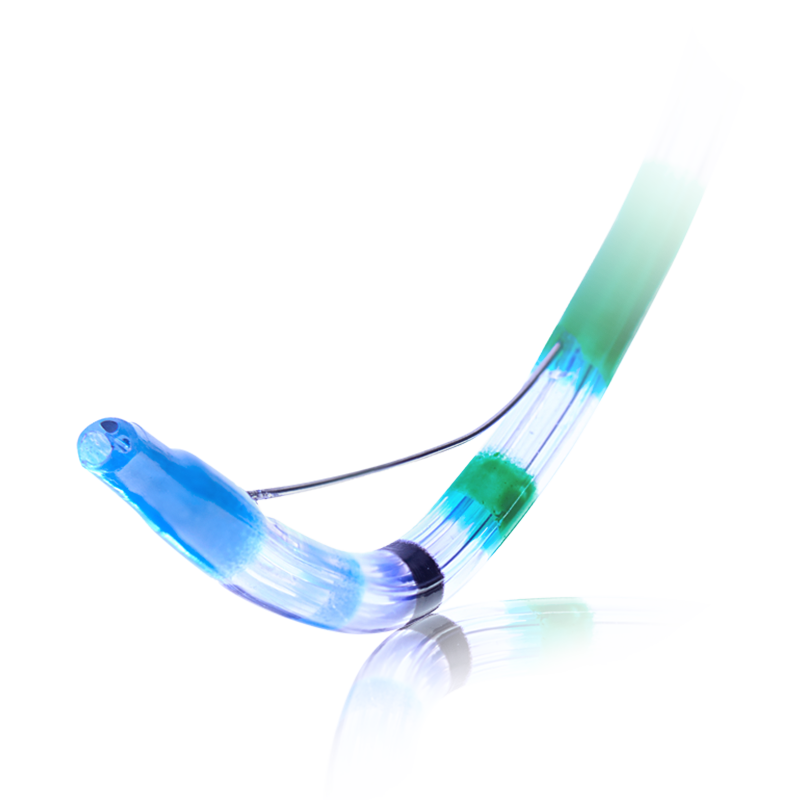

arced trupass papillotome showing the tip
TruPass® Papillotomes are guaranteed to orient between 11 and 1 o'clock when approaching the papilla and are backed by the CONMED Biliary Assurance Program.1

TruPass® features a visible short wire compatible entry ramp that allows for physician control of the wire. Color-coded cutting wire markers offer easy visibility for determining the papillotome depth and cutting wire location. The smooth, tapered, atraumatic radiopaque tip is designed to reduce trauma to the papilla.

1 Subject to Terms and Conditions, MCM2017139

Going Long?

The Apollo 3AC® Advanced Cannulation Triple Lumen Papillotome offers a trustworthy long wire solution for cannulation of the biliary system. Featuring a smooth and tapered tip that is guaranteed to orient between 11 and 1 o'clock when exiting the duodenoscope, Apollo 3AC® sphincterotomes are designed to streamline procedures while reducing trauma to the papilla.

Documents and Specifications

Sphincterotomes

CAT #
T2043F
TruPass® 20mm Cutting Wire Length
Cath Length
190cm
Tip OD
4.5 F
Cath OD
7-4.5 F
Cutting Wire Length
20mm
Cutting Wire Type
Monofilament
Guidewire Compatibility
.035"/.89mm
Qty
1/Box
CAT #
T3043F
TruPass® 30mm Cutting Wire Length
Cath Length
190cm
Tip OD
4.5 F
Cath OD
7-4.5 F
Cutting Wire Length
30mm
Cutting Wire Type
Monofilament
Guidewire Compatibility
..035"/.89mm
Qty
1/Box
CAT #
P2043F
TruPass® 20mm Cutting Wire Length with FX Wire®
Cath Length
190cm
Tip OD
4.5 F
Cath OD
7-4.5 F
Cutting Wire Length
20mm
Cutting Wire Type
Monofilament
Guidewire Compatibility
.035” /.89mm
Qty
1/Box
CAT #
P3043F
TruPass® 30mm Cutting Wire Length with FX Wire®
Cath Length
190cm
Tip OD
4.5 F
Cath OD
7-4.5 F
Cutting Wire Length
30mm
Cutting Wire Type
Monofilament
Guidewire Compatibility
.035” /.89mm
Qty
1/Box
